8-inch Swing Up Jockey Wheel

$113.00

1 in stock

1 in stock

SKU: JW4ZUB Category:
Couplemate accepts PayPal, Visa and Mastercard.

8-inch Swing Up Jockey Wheel

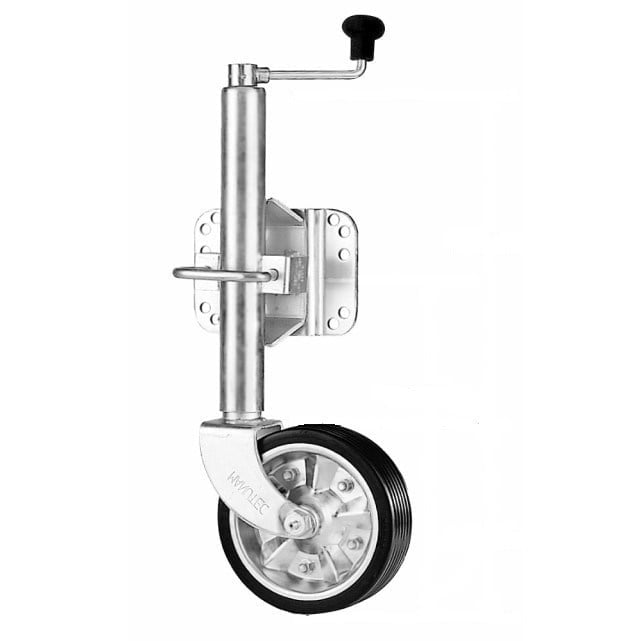

The 8-inch swing-up jockey wheel with a zinc steel rim and solid rubber tyre. It has a maximum static load capacity of 700kg.

It features a swing-away bracket for convenient stowage when not in use.

8-inch swing up jockey wheel by Manutec When choosing an 8-inch swing-up jockey wheel, it is important to consider the weight of your trailer, the maximum load capacity of the wheel, and the material of the wheel. You should also make sure that the wheel is compatible with your trailer’s drawbar.

There are four types of high-quality Jockey Wheels in the 8-inch rubber range

  • Bolt-on with a Clamp
  • Bolt-on No Clamp
  • Extra Height with a Clamp
  • Extra Height No Clamp
  • U-Bolt Swivel to suit 3-inch and 4-inch trailer chassis rails.

Choosing the right jockey wheel is critical. It helps in more ways; it helps manoeuvre the caravan, and lower and raise the A-frame drawbar bar when required.

Although most caravans come with a jockey wheel, it’s advisable to invest in a good replacement that suits your weight rating better.

If your caravan has a load capacity of 700 kg or below, this is a perfect choice for you. It’s easy to use, adjust, remove, and manoeuvre. Made of a zinc steel rim with a solid rubber tyre, it comes with bearings.

We recommend this product for trailers having 4-leaf spring suspensions or smaller.

Note: Wheels are rated for different loads and have two functions

  • Lift the caravan off the tow ball.
  • To move the caravan to its location. When moving your trailer, do not forget to lower the stem for maximum efficiency.

Technical Specifications

  • Wheel diameter – 200mm x 50mm
  • Weight – 8.2 kg
  • Static Load Capacity – 700kg
  • Dimensions – 52 cm x 15 cm x 15 cm
  • Zinc Coating
  • Max Height: 570mm
  • Lift 225mm
  • Steel Bearings in the Wheel
  • Solid tyre outer rubber Wheel

We offer a wide range of jockey wheels, each with a different load capacity.

More Jockey Wheels and Parts are available below

Additional information

Weight9 kg
Dimensions80 × 20 × 20 cm
