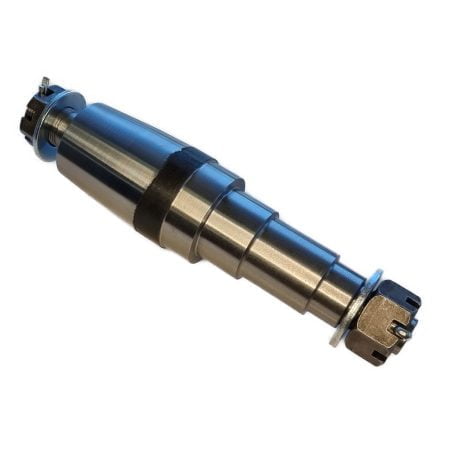

Tie-Down or Dexter Torsion Axle Spindle

Tie-Down or Dexter replacement torsion axle spindle to suit 3.5k axle and 6k axle assemblies.

Tie-down Engineering and Dexter USA use removal spindles on drop-down trailer hub assemblies.

Ford 5 Stud and 6 Stud Landcruiser are bolt patterns used on American trailers.

When removing the cotter pin, exercise caution not to break the legs. Removing the castle nut and washer allows the back of the stub axle to be tapped free of the drop plate.

3.5k Removable Spindle Specifications

  • L4649 – Front Bearing
  • L68149/111 – Rear Bearing
  • GS-1719 Grease Seal
  • 1.98″ Dust Cap
  • Part Number 80043A

Purchase the bearing kit here.

6k Removable Spindle Specifications

  • 15123/14125A – Front Bearing
  • 25580 – Rear Bearing
  • Grease Seal 57m – GS-2250DL
  • Dust Cap – 2441
  • Part Number 80062A

We recommend you use only Japanese Bearings for any trailer activity.

Understanding Axles and various types of well-machined axles and bad axles.

The links below contain a variety of stub axles and trailer parts we manufacture.

Additional information

Weight5 kg
Dimensions20 × 5 × 5 cm
Spindle Size
